CSV-1382 Quick Install Guide

HDMI™ KVM SWITCH FOR DUAL HDMI™ 4K 60Hz

Control two HDMI™ source systems using one keyboard, mouse, display, microphone, and audio output.
Supports manual, automatic, IR remote, hotkey, and mouse‑gesture switching.

Package Contents

Please verify that all items are included and undamaged before installation:

  • 1× CSV‑1382 HDMI™ KVM Switch
  • 1× Power Adapter (5V / 3A)
  • 1× IR Remote Control
  • 1× IR Extender
  • 2× USB Gen1‑B to USB Gen1‑A Cables

If any item is missing or damaged, contact your supplier before use.






What This Product Does

The CSV‑1382 is a dual‑system HDMI™ KVM switch.

  • Two PCs → one HDMI™ display
  • One keyboard, mouse, microphone, and audio output shared
  • Only one PC is active at a time

Switching can be performed via:

  • Front‑panel buttons
  • IR remote control
  • Keyboard hotkeys
  • Mouse traversal
  • Automatic detection

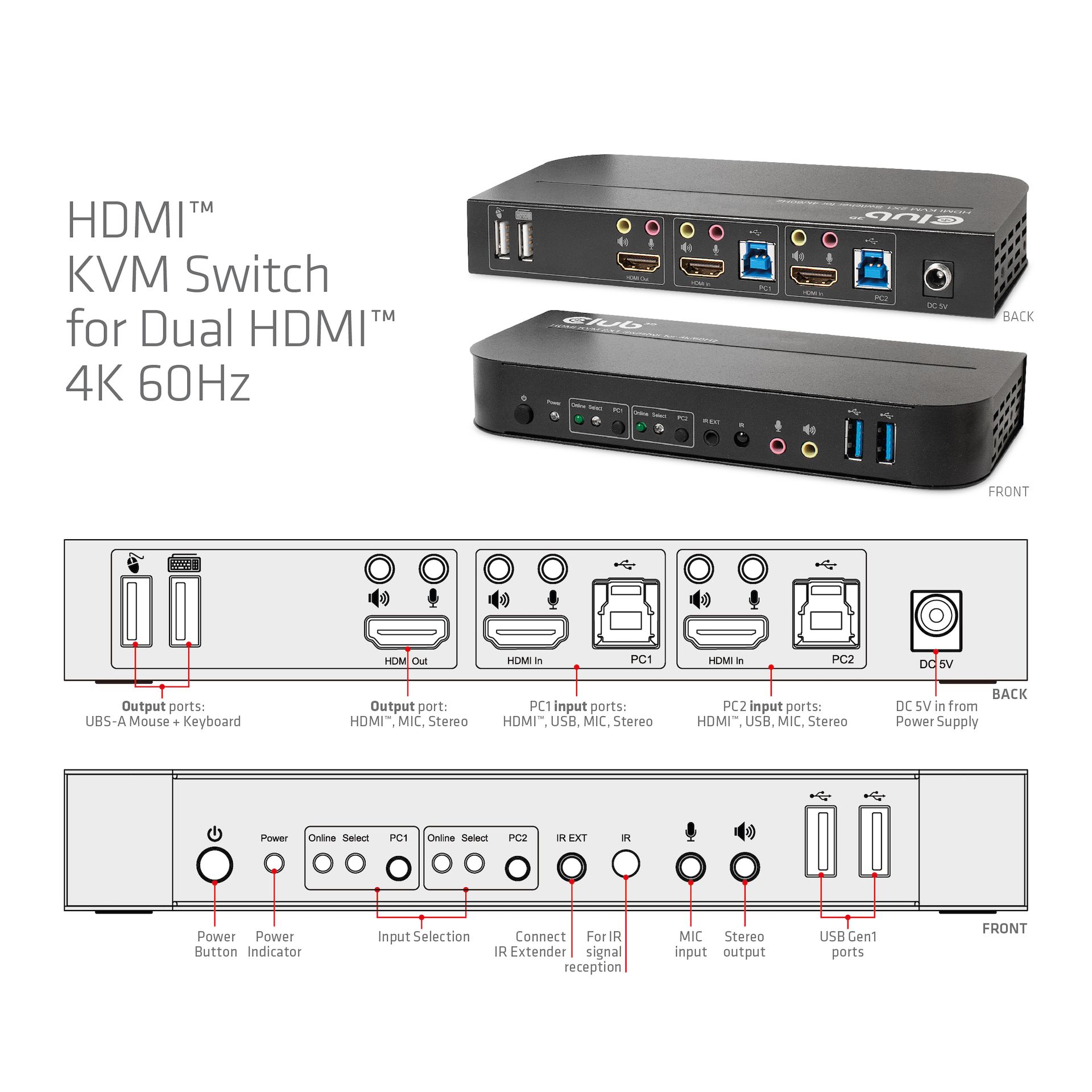

Front Panel

    • Power Button – Turns the unit on or off
    • Power Indicator LED – Lights when DC power is connected and the unit is on
    • Input Selection LEDs – Indicate which PC is selected
      • LEDs flash during automatic switching mode
    • Online LEDs – Indicate active USB‑B connection to a PC
    • IR EXT Port – Connect IR extender for remote operation
    • IR Receiver – Receives IR remote commands
    • 3.5 mm Microphone Input
    • 3.5 mm Stereo Audio Output
    • USB Gen1 Ports – For peripherals such as USB drives, printers, or scanners

    Back Panel

    1. USB Ports – Connect keyboard and mouse
    2. Audio Ports – Connect microphone and amplifier
    3. HDMI™ Output – Connect to HDMI™ display
    4. PC1 Input Ports – HDMI™, USB‑B, MIC, and audio for PC1
    5. PC2 Input Ports – HDMI™, USB‑B, MIC, and audio for PC2
    6. DC 5V Input – Connect provided power adapter

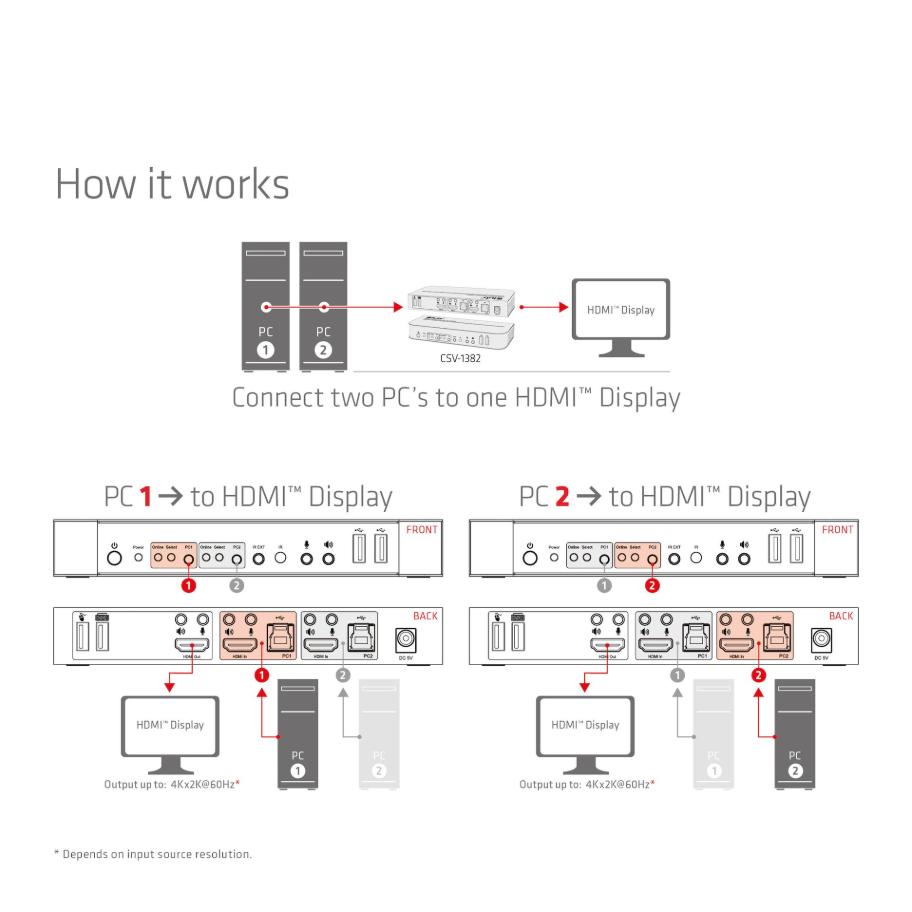

    Connection and Operation



      1. Connect each PC to the unit using:
        • HDMI™ cable
        • USB‑B cable
        • 3.5 mm microphone and stereo cables (if used)
      2. Connect keyboard and mouse to the USB‑A ports on the back panel.
      3. Connect microphone, amplifier, and display to the corresponding ports.
      4. Connect the 5V / 3A power adapter and press the power button.

      When powered correctly:

    • Power LED lights up
    • Online LEDs indicate connected PCs
    • Select LED shows the active PC

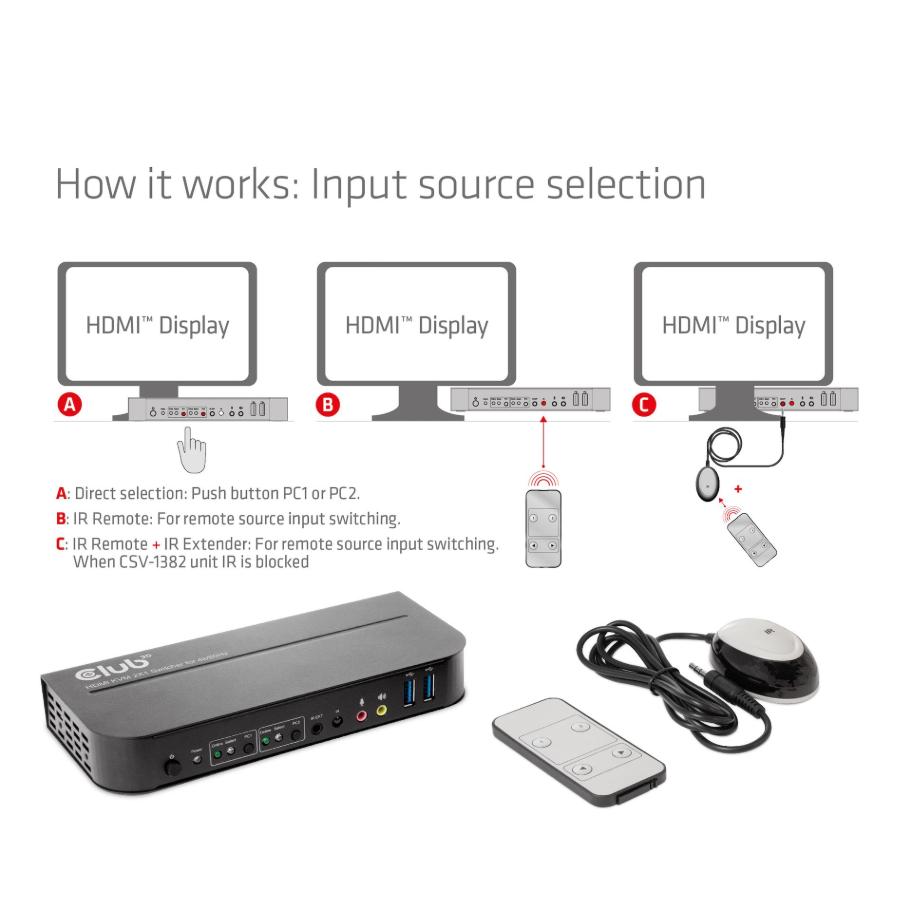

      Switching Methods (Important)

      Manual Switching

    • Use front‑panel buttons or IR remote
    • Buttons 1 / 2 select PC1 or PC2

    Automatic Switching

    • When a PC is connected via USB‑B, the unit can switch automatically
    • When an active PC is powered off or disconnected, the unit switches to the next available PC

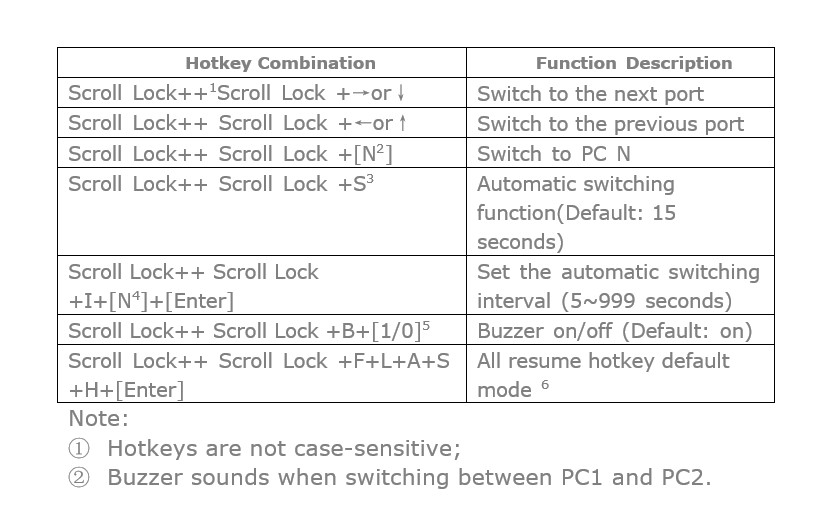

    Hotkey Switching

    • Hotkey format:
      Scroll Lock → Scroll Lock → N
      (N = PC number)
    • Hotkey detection timeout: 5 seconds
    • Hotkey function only works with standard keyboards connected to the rear USB‑A ports

    🖱 Special Switching Functions

    Mouse Traversal

    • Move the mouse to the far right side of the screen and continue for 2 seconds
    • Automatically switches to the next PC
    • Switching order: PC1 → PC2 → PC1

    USB‑B Detection Switching

    • Detects when a PC is connected or disconnected via USB‑B
    • Automatically switches to the active PC

    Operational Notes

    • Only one PC can be controlled at a time
    • Automatic switching behavior is expected and configurable via hotkeys
    • Functional keyboards may not support hotkey switching
    • Ensure all cables are securely connected before troubleshooting

    This behavior is normal and does not indicate a defect.
