CSV-1584 QUICK INSTALL GUIDE
USB‑C® 6‑in‑1 Dual Displays Portable Dock with USB‑C® Video 4K@60Hz
Thank you for purchasing the CSV‑1584 USB‑C® 6‑in‑1 Dual Displays Portable Dock.
After unpacking the product, please ensure that all items are included and free from damage.
If any item is missing or damaged, please inform your supplier immediately.
Package Contents

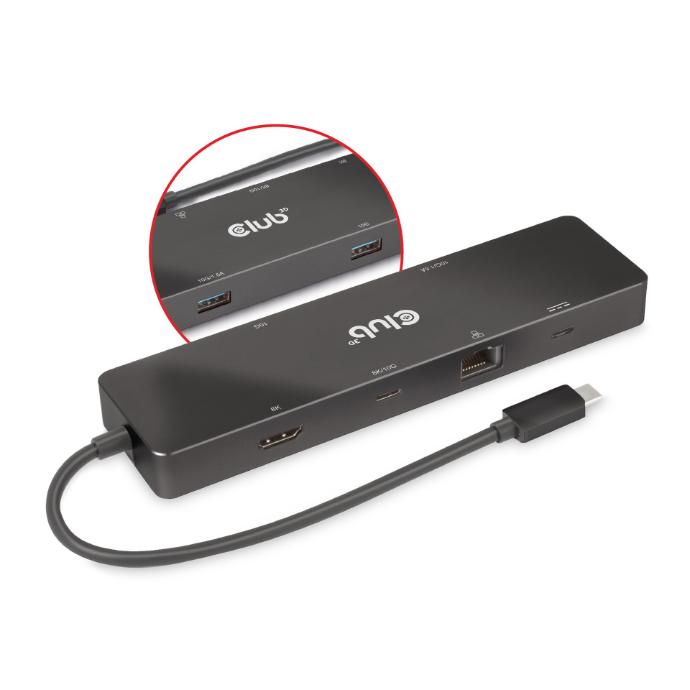

- CSV‑1584 USB‑C® 6‑in‑1 Dual Displays Portable Dock
- Integrated USB‑C® host cable
What This Product Does
The CSV‑1584 is a portable USB‑C® docking station designed to expand a single USB‑C® port into video output, USB data, Ethernet networking, and power delivery.
It uses DisplayPort™ 1.4 Alternate Mode and supports:
- A single external display up to 8K@30Hz (DSC), or
- Two external displays at 4K@60Hz simultaneously
The dock also supports USB data transfer, Gigabit Ethernet, and USB‑C® Power Delivery up to 100 W.
Important Compatibility Notice
Display resolution, refresh rate, bandwidth, and the number of supported displays are limited by the host system, its graphics controller, USB‑C® implementation, and operating system.
The docking station does not override host system limitations.
If the host supports DP 1.4 Alternate Mode, output can reach up to 8K@30Hz (DSC).
If the host supports DP 1.2 Alternate Mode only, maximum output is limited to 4K@30Hz.
The final output resolution, refresh rate, and pixel format depend on both the host system and connected display.

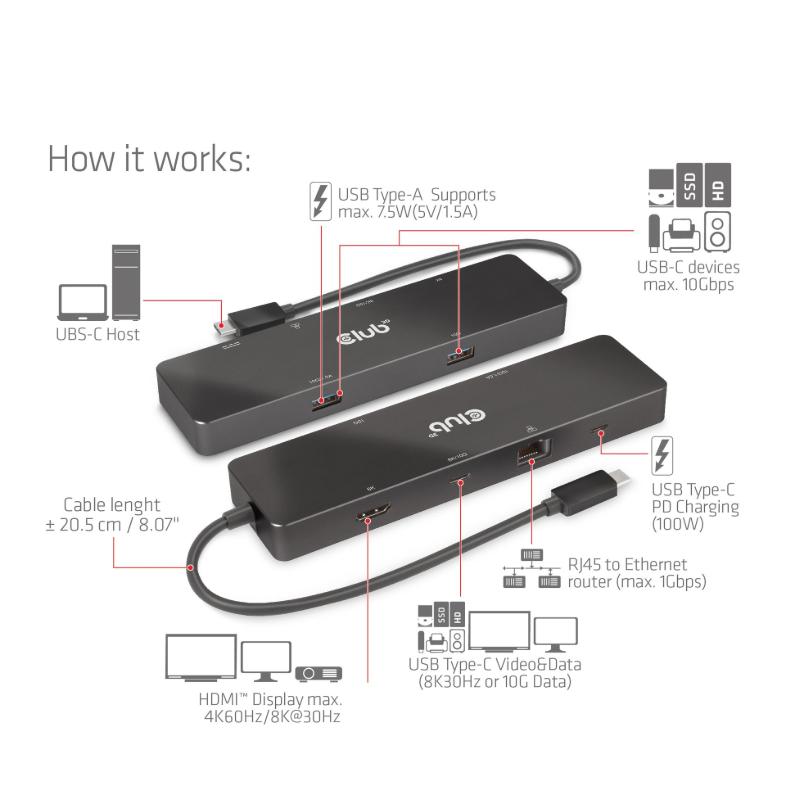

Interfaces
Upstream (Host Connection)
- USB‑C® Male
- DisplayPort™ 1.4 Alternate Mode
- USB 3.2 Gen2
Downstream (Dock Interfaces)
- USB‑C® Video and Data
- Up to 8K@30Hz (DSC) video or
- Up to 10 Gbps USB data
- HDMI™ Video
- Up to 8K@30Hz (DSC)
- USB‑A Data x2
- Up to 10 Gbps each
- Ethernet RJ‑45
- 10 / 100 / 1000 Mbps
- USB‑C® Power Delivery Input
- PD 3.0 up to 100 W
- Supports Fast Role Swap
System Compatibility Notes
- Designed for USB‑C® hosts supporting DisplayPort™ Alternate Mode
- Supported operating systems include Windows 10 or later and macOS 13.5.2 or later
- Dual‑display behavior depends on operating system display handling
This behavior is expected and does not indicate a product defect.
Power and Charging Behavior
- External USB‑C® power is required when using power‑hungry devices
- The USB‑C® PD port supports up to 100 W power input
- Power delivery to the host depends on connected devices and available power headroom
When connecting USB‑C® displays, ensure a power adapter with sufficient capacity is connected.
Connection Instructions
- Connect the USB‑C® host cable to the USB‑C® port of the host system.
- Connect displays to the HDMI™ and/or USB‑C® video ports.
- Connect USB devices and Ethernet cable as required.
- If charging the host or powering USB‑C® displays, connect a suitable USB‑C® power adapter to the PD port.
It is recommended to connect devices one at a time to observe proper detection and operation.
Supported Display Resolutions
- Maximum output up to 8K@30Hz (DSC) or 4K@60Hz, depending on source signal
- Dual‑display operation up to 2 × 4K@60Hz, subject to host system support
- Supports High Dynamic Range (HDR)
Ready for Use
Once connected and powered appropriately, the CSV‑1584 docking station is ready for operation.
You can now use external displays, USB peripherals, Ethernet networking, and power delivery through a single USB‑C® connection.
Common Questions
Does this dock work with all USB‑C® ports?
Video output requires a USB‑C® port that supports DisplayPort™ Alternate Mode.
Will the dock always support dual displays?
Dual‑display support depends on the host system and operating system.
Does the dock convert or upscale video signals?
No. Video output matches the capabilities of the host system and the connected displays.
Is external power required?
External power is recommended when charging the host system or powering connected USB‑C® displays.
